Dual Redundant Ethernet Interface Card (DUREIC) envisages redundancy in Ethernet communication systems in various aerospace and defence systems using a protocol defined in IEC 62439-3 Standard called Parallel Redundancy Protocol (PRP) to solve the problem of single point failure in networks. DUREIC works on Ethernet Layer in the stack and the redundancy is invisible to the application layer as well as network elements like switches.
The IP and hardware solution that is built can either exist as an individual card in the existing systems or as a standalone retrofit system that does not affect the existing electronic sub-systems in the solution. DUREIC extends PRP Standard to meet Indian defence systems requirements such as
supporting double the number of source nodes, Jumbo packet size Ethernet Packets. DUREIC also provides health and statistics of Ethernet packets per source node level enabling comprehensive traffic analysis and improved system debuggability.
KEY FEATURES
- Implements IEC 62439-3 Standard called Parallel Redundancy Protocol (PRP) in FPGA RTL
- Implements CoreEL proprietary and copyrighted algorithm for low latency CAM and Link Redundancy.
- Available on AMD 16nm Ultrascale+ Devices; easy portability across all AMD, Intel FPGAs/SoCs.
- Available in 1000Base-X or 1000Base-T Ethernet
- Configurable for up to 512 unique source nodes.
- Configurable for Standard as well as Jumbo Ethernet Frames
- VLAN Support, Duplicate Discard and Duplicate Accept Modes
- Health and statistics reporting on a per source node basis
- Ethernet Statistics for each port
- Remote upgrade of images
- Secure web-browser based interface for Command, Control and Status

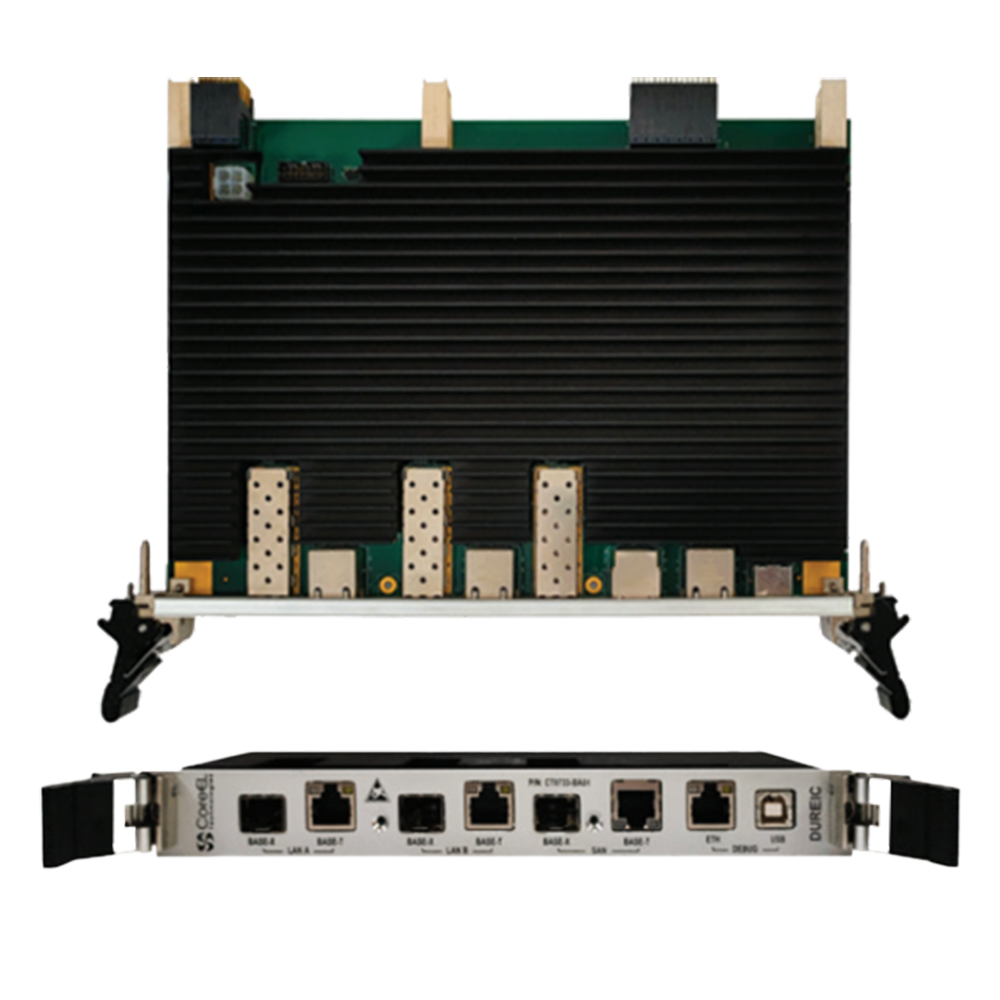

- MIL Grade Hardware in 6U VPX form factor
- Supports communication over either front panel or Backplane.
- Console Ethernet port for Control and Status
- MIL Grade Enclosure to emulate DANP; small formfactor; retrofit
