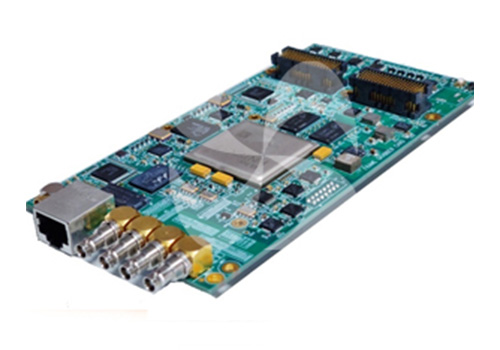

This XMC Frame Grabber Card captures,processes and displays different types of Video formats using on board Xilinx FPGA hardware. This board accepts multiple simultaneous inputs and can provide output in multiple formats, including 3G-SDI, HD-SDI and Analog (CVBS). The module can also accept video sources from a PCIe DMA stream for real-time conversion to SDI or analog output.
Key Features
- Works on standard XMC power supply
- CoreEL FPGA Frame Grabber Video Capture and Process engine
- 2GB DDR3L to FPGA for data processing
- 2Gb NOR Flash for Configuration of FPGA
- Supports 1G (10/100/1000) Ethernet communication
- Supports PCIe X4 Gen 2, Upto 5 GT/s
- One UART port terminated to 3 pin connector for debug
- 2Kb EEPROM for storage of board information
- Supports up to 4 video channels (Four Bi-directional SDI)
- Two CVBS Input channel each supports NTSC & PAL formats
- Supports 3G/HD/SD/CVBS video formats
- Low Power Consumption, <25 watts
- Available with Standard XMC 2.0 configuration (Air Cooled & Conduction Cooled)
