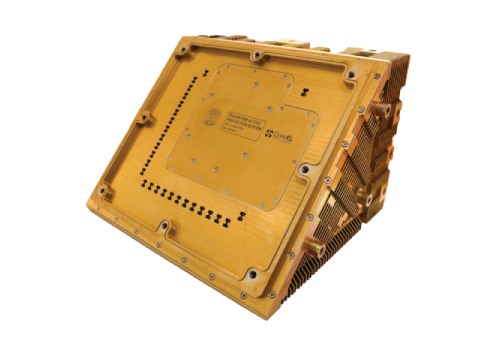

The Radar for Active Protection System is a 24 Ch Pulsed MIMO Radar for detecting and track high Speed projectiles threats to aid in the protection of Battle Tank. The system provides accurate range, elevation, bearing and speed information to neutralize threats towards the tank. Four such units are mounted on a tank to provide for 360degree protection.
Key Features
- Receiver
◦ Operating Frequency : X-Band
◦ No of Channels : 24 Nos - Transmitter
◦ Operating Frequency : X-Band
◦ Operating Mode : Pulsed
◦ No of Channels : 3 Nos - Mechanical
◦ Dimensions : 480 mm (W) x 290 mm (H) x 370 mm (D)
◦ Conduction Cooled Chassis
◦ Ballistic Resistance : STANAG 4569 Level 3 - Power Supply
◦ Power Consumptions : Max. 160W, Voltage : 28 V DC
