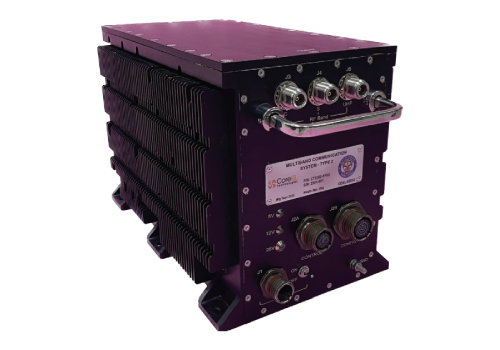

Multiband Communication System is a customized 3/4th ATR system comprising of three bands of communication links: C-Band Full Duplex LOS, UHF Band Half Duplex LOS, S-Band Full Duplex Satcom. The unit is designed to be installed in the ship and inside an Autonomous under water vehicle. The system also consists of two base band modules to generate the necessary waveforms.
Key Features
- RF Output Power
◦ C Band 10W
◦ UHF Band 10W
◦ S Band 8W - Power Consumption
◦ Max power 230 Watts, operating on 28V DC. - Weight ≤13Kg
- Baseband module features
◦ Uses AMD Zynq Ultrascale+ MPSoC
◦ Direct RF Sampling 12GSPS DAC
◦ Direct RF Sampling 3GSPS ADC - Environmental
◦ Temperature: – 20°C to + 70°C (Storage), – 10°C to + 55°C (Operational)
◦ MIL-STD461F, MIL-STD-810G, MIL-STD-704F qualified - Conduction Cooled
